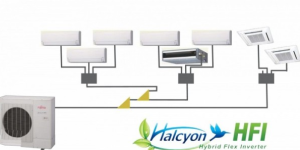

HFI 8-Zone Mix & Match Flex Inverter System

HFI Flexibility – 39k up to 62k BTU

AOU48RLXFZ – 48k BTU Outdoor Unit (8-Zone)

* The HFI system is rated at 48,000 BTUs. But you can connect up to 62,000 BTU’s (or about 130%) of rated evaporator capacity to the AOU48RLXFZ.

* Minimum & maximum operational capacity: 2 to 8 Indoor Units

* 80 to 130% connectable capacity – The HFI system is rated at 48,000 BTUs with a maximum ability of up to 130% or 62,000 BTUs of rated evaporator capacity to the AOU48RLXFZ. All indoor units can operate at once, however if all the evaporators are calling for cooling or heating at the same time, it will decrease the capacity of each evaporator not to exceed the condenser’s capacity. As zones meet desired set point the system’s other evaporators increase output up to the evaporator’s rated capacity.

* Usable BTU range: 39,000 to 62,000 BTU

* Mix & Match flexibility of evaporator type and capacity allows you to choose the indoor unit that best fits the application.

* Suitable applications may include: Apartments & residences, nursing homes, doctor’s offices, condominiums, etc.

* Systems do not require branch boxes or separation tube assemblies.

Wall Mounted Evaporators
– ASU7RLF
– ASU9RLF
– ASU12RLF
– ASU18RLF
– ASU24RLF

Duct Type Evaporators
– ARU9RLF
– ARU12RLF
– ARU18RLF
– ARU24RLF

Cassette Type Evaporators
– AUU9RLF
– AUU12RLF
– AUU18RLF

  • Download PDF FileFujitsu
